12V-220V/10A SPST Paste Switch – Gebildet Water Drop with 1m Wire

Description

Product Overview

The Gebildet 12V-220V/10A SPST paste button switch is engineered for demanding automotive lighting applications where reliability and ease of installation are paramount. Constructed with a solid brass contact core, the switch delivers consistent electrical performance up to 10 amps while maintaining a low voltage drop, ensuring that fog driving lights, neon strips, daytime running lights (DRL) and LED light bars receive clean power without flicker. Its distinctive water‑drop shaped paste‑type button not only provides an ergonomic surface for fingertip operation but also adds a subtle aesthetic touch that blends with modern vehicle interiors. The unit is rated IP65, meaning it is fully protected against dust ingress and can withstand water jets from any direction, making it suitable for both indoor workshop builds and outdoor vehicle installations exposed to rain, splashes, or road spray. The included 1 meter (or optional lengths) of pre‑terminated wire with a crimp connector eliminates the need for additional wiring accessories, allowing installers to mount the switch directly onto a dashboard, console, or lighting harness with a simple push‑in action. All dimensions—6.06 × 4.25 × 0.83 inches—are compact enough to fit into tight panel cutouts while the 1.8 ounce weight keeps the overall load minimal.

Operating at a nominal 12 volts but capable of handling up to 220 volts, the switch offers a wide voltage tolerance that accommodates a variety of lighting circuits found in aftermarket and OEM setups. The contact material, brass, is plated to resist corrosion and wear, extending the service life well beyond the typical replacement interval for standard push‑button switches. The single‑pole single‑throw (SPST) configuration provides a straightforward ON‑OFF control method, eliminating the complexity of multi‑position switches and reducing the chance of wiring errors during installation. The crimp‑type connector ensures a secure mechanical and electrical bond, while the double‑sided adhesive backing on the housing allows the unit to be affixed without drilling, preserving the original panel integrity. The switch complies with the X‑10 connectivity protocol, enabling integration with basic lighting control modules that support simple touch activation. With a wattage rating of 2300 watts, the device can safely manage high‑current LED arrays and neon tubes without overheating.

Usage

The water‑drop paste switch is ideally suited for a range of lighting projects that demand both durability and a clean user interface. Off‑road enthusiasts often upgrade their vehicles with powerful fog driving lights to improve visibility in harsh weather; this switch provides a reliable on‑demand power source that can be operated with a single fingertip press, even while wearing gloves. Neon lighting enthusiasts appreciate the switch’s low profile and aesthetic shape, which complement the glowing tubes without detracting from the visual effect. Commercial fleets that employ LED light bars for auxiliary illumination can benefit from the switch’s IP65 rating, ensuring that the control remains functional after exposure to rain, dust, and vibration during regular operation. DIY hobbyists building custom interior lighting panels will find the pre‑wired 1 m cable and adhesive mounting method especially convenient, as it reduces the need for soldering and panel modification. The switch’s manual control method also works independently of vehicle electronics, providing a fail‑safe option when the main power system is turned off.

Why Choose Us

Gebildet has a reputation for producing high‑quality automotive components that meet rigorous industry standards. Each switch undergoes a multi‑stage quality inspection process, including contact resistance testing, waterproof sealing verification, and mechanical endurance cycling, to guarantee consistent performance across thousands of activation cycles. The use of premium brass contact material, combined with a robust polymer housing, delivers a balance of conductivity and impact resistance that many low‑cost alternatives lack. Our water‑drop design is not merely decorative; it is engineered to provide a larger contact area for the finger, reducing the force required to actuate the switch and minimizing user fatigue during frequent operation. The product is backed by a responsive customer support team that offers technical assistance, replacement parts, and a clear warranty policy, ensuring that buyers receive ongoing value beyond the initial purchase. With a best‑seller rank of #6 in the automotive replacement pushbutton switches category, the switch has earned the trust of a large community of automotive enthusiasts and professional installers alike.

Installation Guide

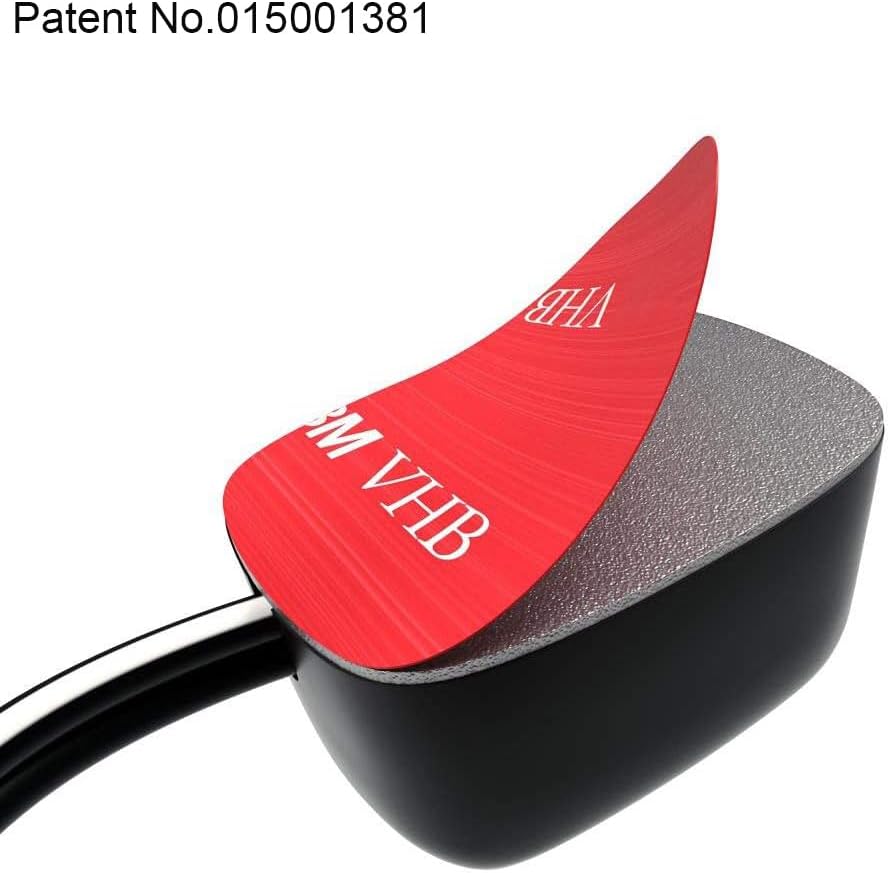

Step 1: Clean the mounting surface with a lint‑free cloth to remove dust, oil, or residues. A clean surface ensures the adhesive backing adheres securely. Step 2: Peel off the protective film from the double‑sided adhesive tape on the back of the switch housing. Align the switch with the pre‑drilled or custom cutout on the dashboard, console, or lighting panel. Press firmly for at least 30 seconds to achieve full contact. Step 3: Connect the pre‑terminated 1 m wire to the vehicle’s lighting harness using a compatible crimp connector or splice block. Verify polarity if the switch is used in a polarity‑sensitive circuit. Step 4: Test the switch by toggling the button while the lighting circuit is powered. Confirm that the lights turn on and off cleanly without flicker. Step 5: If a more permanent connection is desired, route the wire through a protective conduit and secure it with zip ties to prevent movement or abrasion. The entire installation can be completed in under ten minutes for most standard applications.

Technical Specifications

• Operating Voltage: 12 V – 220 V
• Current Rating: 10 A (continuous)
• Contact Material: Brass with corrosion‑resistant plating
• IP Rating: IP65 (dust‑tight and water‑jet protected)
• Switch Type: SPST (single‑pole, single‑throw) – Normally Open
• Connector Type: Crimp terminal with 1 m pre‑wired cable (optional lengths available)
• Dimensions: 6.06 × 4.25 × 0.83 inches (L × W × H)
• Weight: 1.8 oz (0.352 lb)
• Material: High‑impact polymer housing, brass contacts
• Compliance: X‑10 protocol compatible, automotive EMC standards

Maintenance Tips

To keep the switch operating at peak performance, inspect the adhesive backing periodically for any signs of lifting, especially after exposure to extreme temperatures. If the adhesive begins to lose its grip, a small amount of automotive‑grade double‑sided tape can be applied to reinforce the bond. Clean the button surface with a soft, dry cloth; avoid using abrasive cleaners that could damage the paste coating. Periodically check the wire connections for corrosion or looseness, tightening crimp connectors as needed. In environments with heavy salt spray or road salt, rinse the switch housing with fresh water and dry thoroughly to prevent long‑term corrosion of the brass contacts. Finally, verify that the load does not exceed the 10 A rating; if higher current is required, incorporate a relay or a higher‑rated switch to protect the unit from overheating.

Key Features

• Water‑drop paste button offers ergonomic, low‑force operation for frequent use
• IP65 sealed housing protects against dust and water, suitable for outdoor and wet environments
• Solid brass contacts with corrosion‑resistant plating ensure reliable conductivity and long service life
• Pre‑wired 1 m crimp‑terminated cable simplifies installation and reduces wiring time
• Backed by responsive customer support and a clear warranty for peace of mind

FAQ

What voltage range can this switch handle?

The switch is rated for a nominal 12 V operation but can safely operate up to 220 V, covering most automotive and aftermarket lighting applications.

Is the switch waterproof?

Yes, it carries an IP65 rating, meaning it is dust‑tight and protected against water jets from any direction, making it suitable for rainy or splashed conditions.

Can I use the switch with LED light bars that draw more than 10 A?

The switch is rated for a maximum continuous current of 10 A. For loads exceeding this rating, consider using a relay or a higher‑current switch to avoid overheating.

How do I install the switch without drilling holes?

The unit includes double‑sided adhesive tape on the back of the housing, allowing you to press‑mount it onto clean, flat surfaces such as dashboards or console panels without drilling.
